16,000~45,000kg

Load Capcity

0~15200mm

Lift Height

Diesel

Drive Types

OVERVIEW

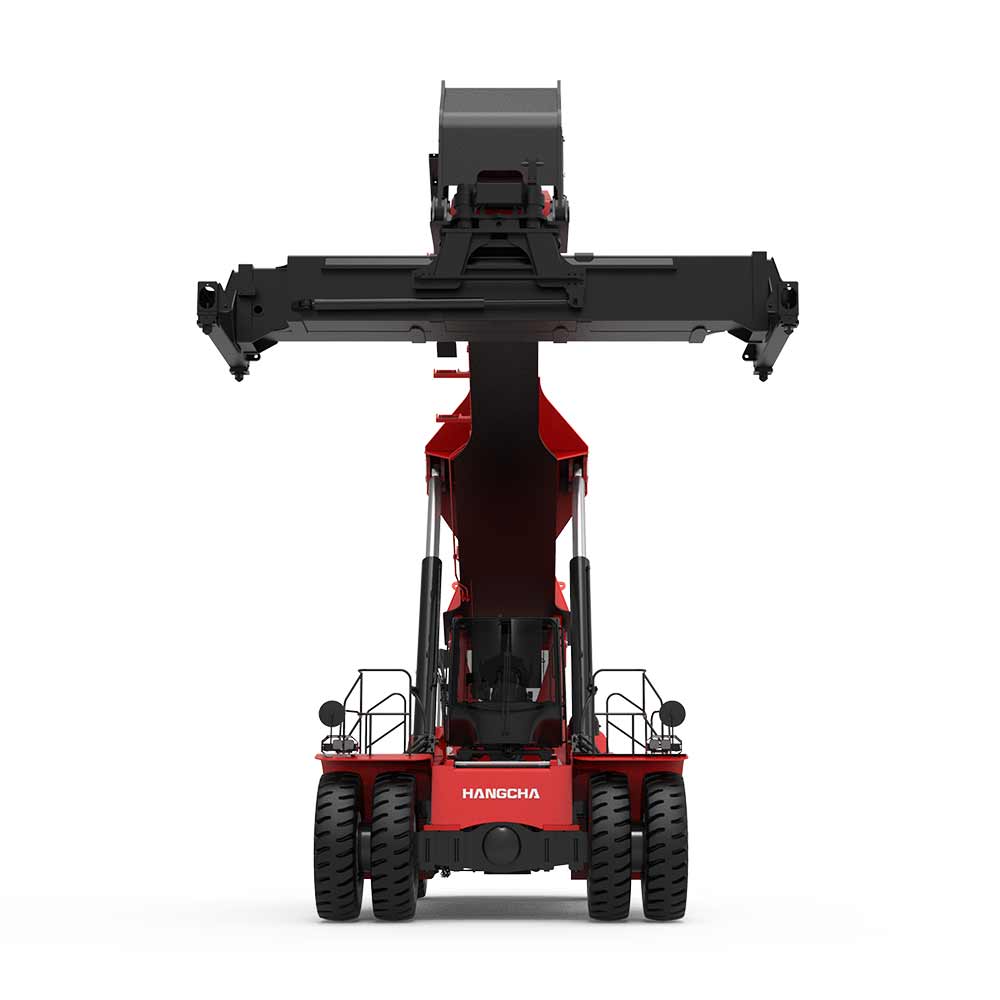

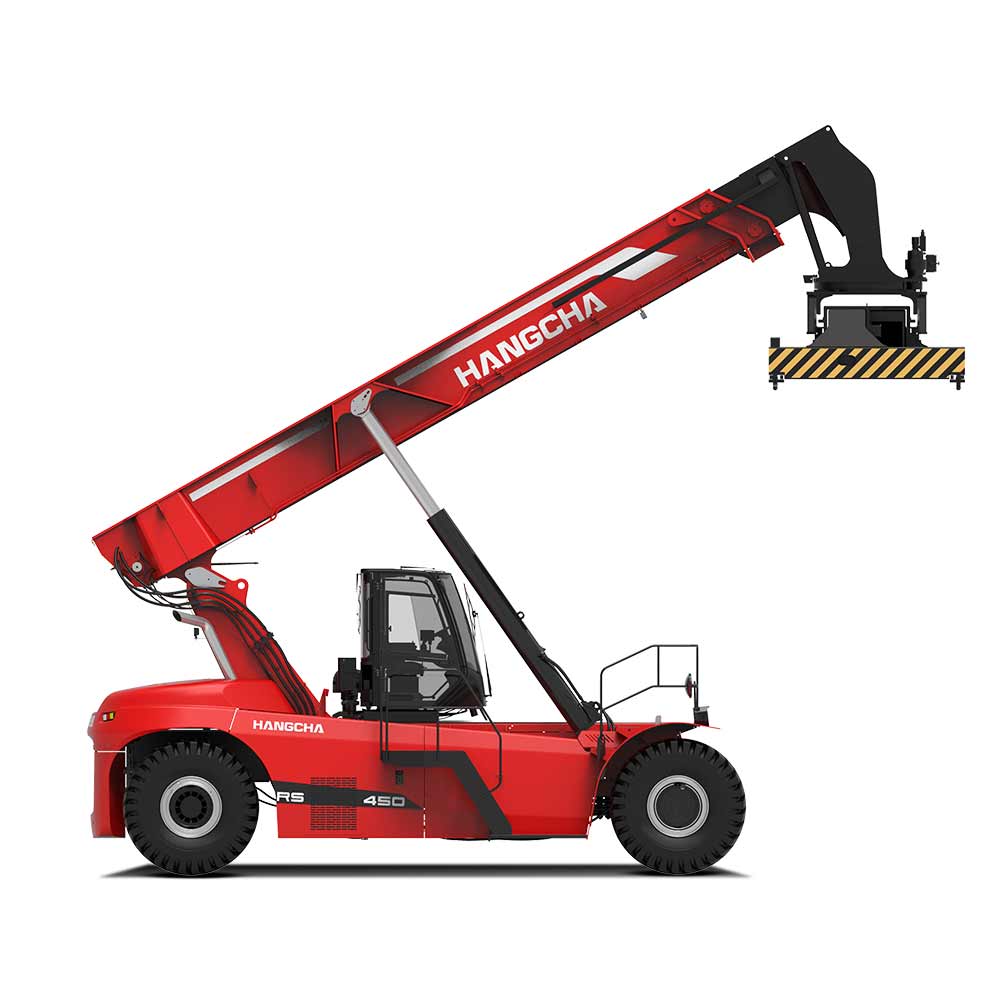

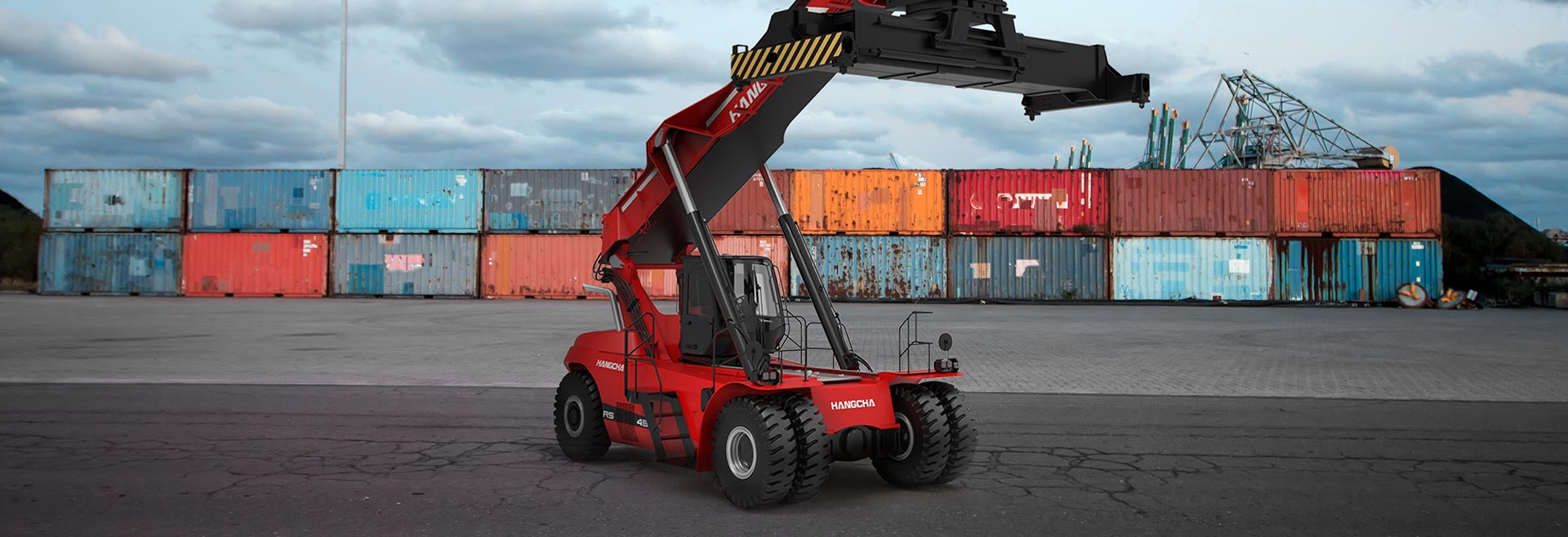

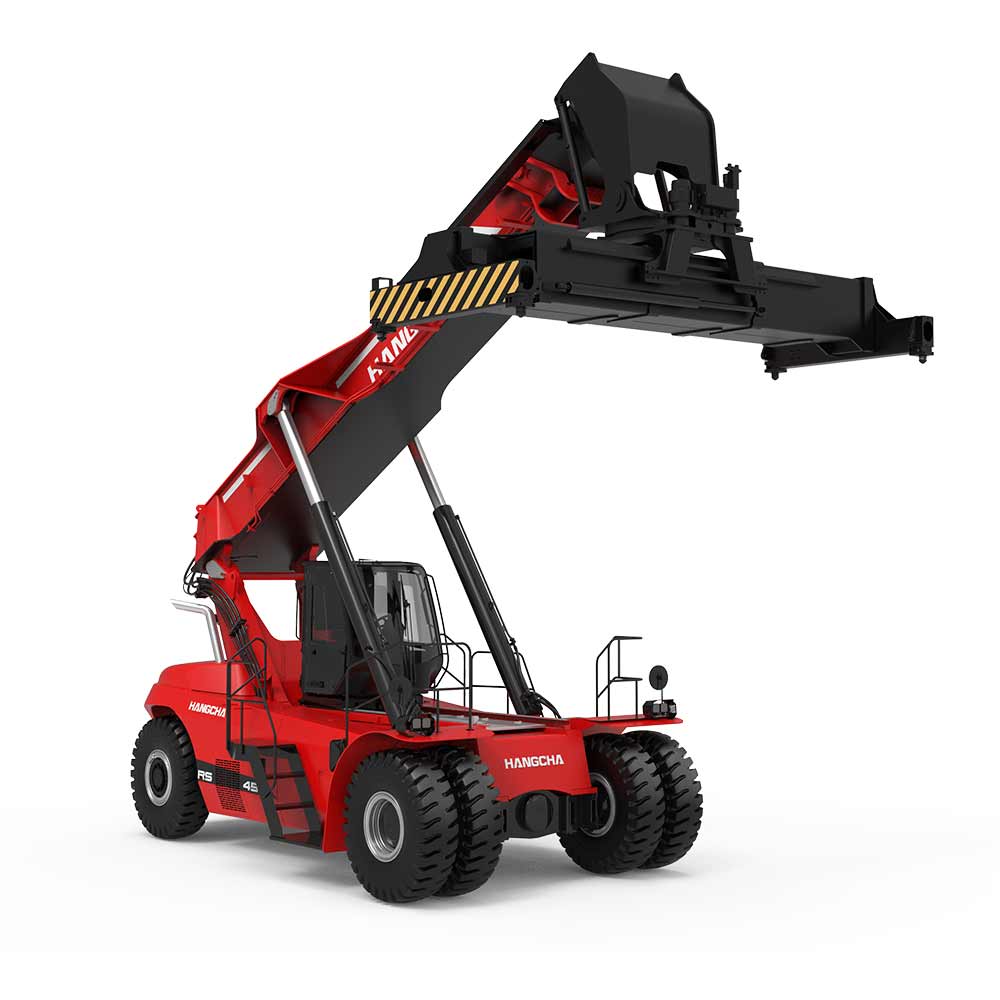

The RS4531CH-XRW86 Reachstacker is a newly developed product based on Hangcha’s X series platforms. Inheriting the appearance of the X series family, it is fashionable, high-end and powerful. Using key parts of internationally renowned brands, it has excellent performance and guaranteed quality. Using advanced control technologies, it is safe, reliable, comfortable and ecient. It is mainly used in the loading, handling and stacking operations of 20’ and 40’ ISO heavy containers and meets the requirements for high-intensity and long-term operations of containers at ports, docks, railway and highway transfer stations, storage yards, etc.

Detail

Detail02

Detail03

Detail04

Detail05

FEATURES
  • Safety

    Safety technologies such as seat sensing, dynamic antitipping protection, longitudinal dual anti-tipping protection, spreader twist-lock dual protection, startup anti-stalling protection, fault protection, etc. are used to ensure safe operations at all times.

  • Maintenance

    The easy-to-remove hood is designed. All the maintenance points are in easily accessible and safe positions and the electric control cabinet wiring method is adopted, which greatly simplifies the maintenance and repair and improves the maintenance efficiency.

  • Effcient

    Electric proportional control, throttle following control, vertical lift control, intelligent cooling fan control and torque control enable efficient and flexible control.

  • Strong power system

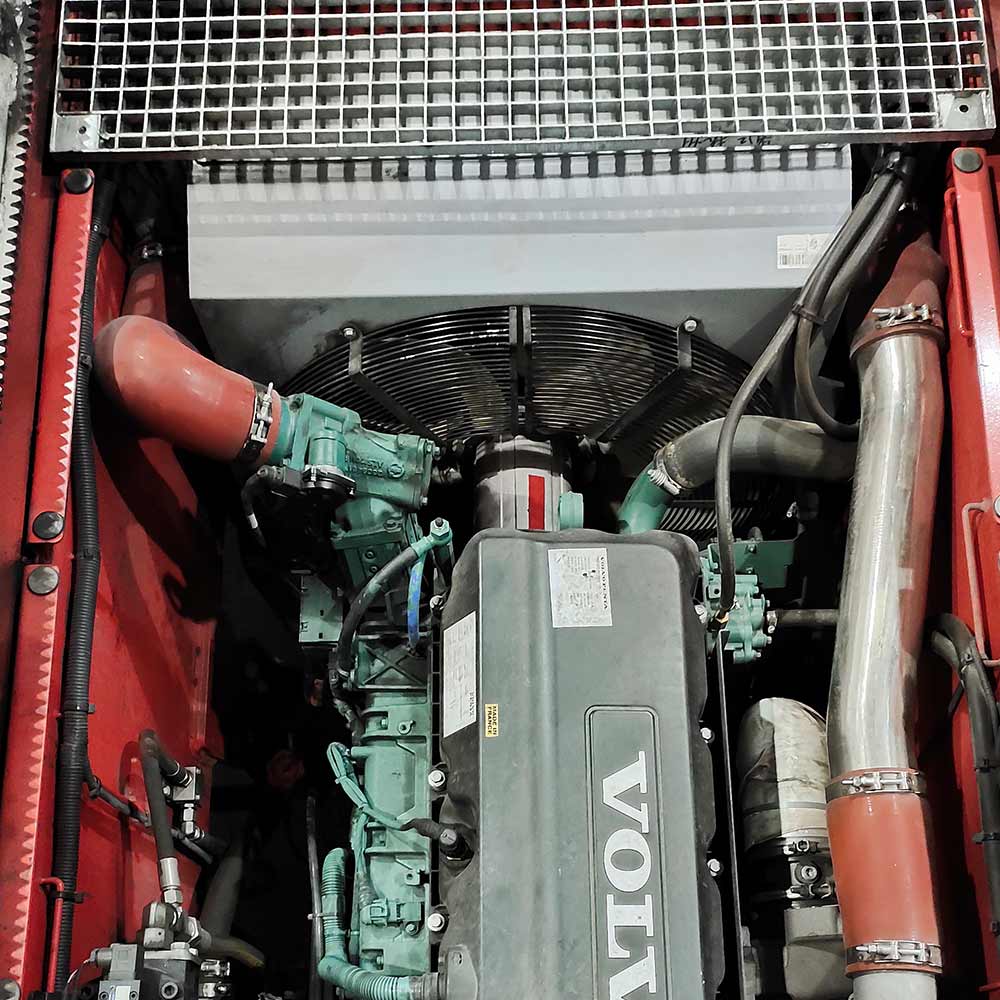

    With high performance and low fuel consumption, the low-speed high-torque VOLVO TAD1151VE engine has advanced fault diagnosis and fault protection functions. With a displacement of 10.8L, six in-line cylinders and low emission, it is turbocharged and meets EPA3, EUⅢA and China Stage III emission requirements.

  • ELME new-generation container spreader

    For the new-generation ELME817 series telescopic container spreader, the design of the telescopic beam, turntable, etc. are optimized, so that the structural strength is increased, the weight of the spreader is 16% less than that of the spreader of the last generation and the service life is prolonged by 30%. The arrangement of the oil cylinder is changed.

  • Vehicle cooling management

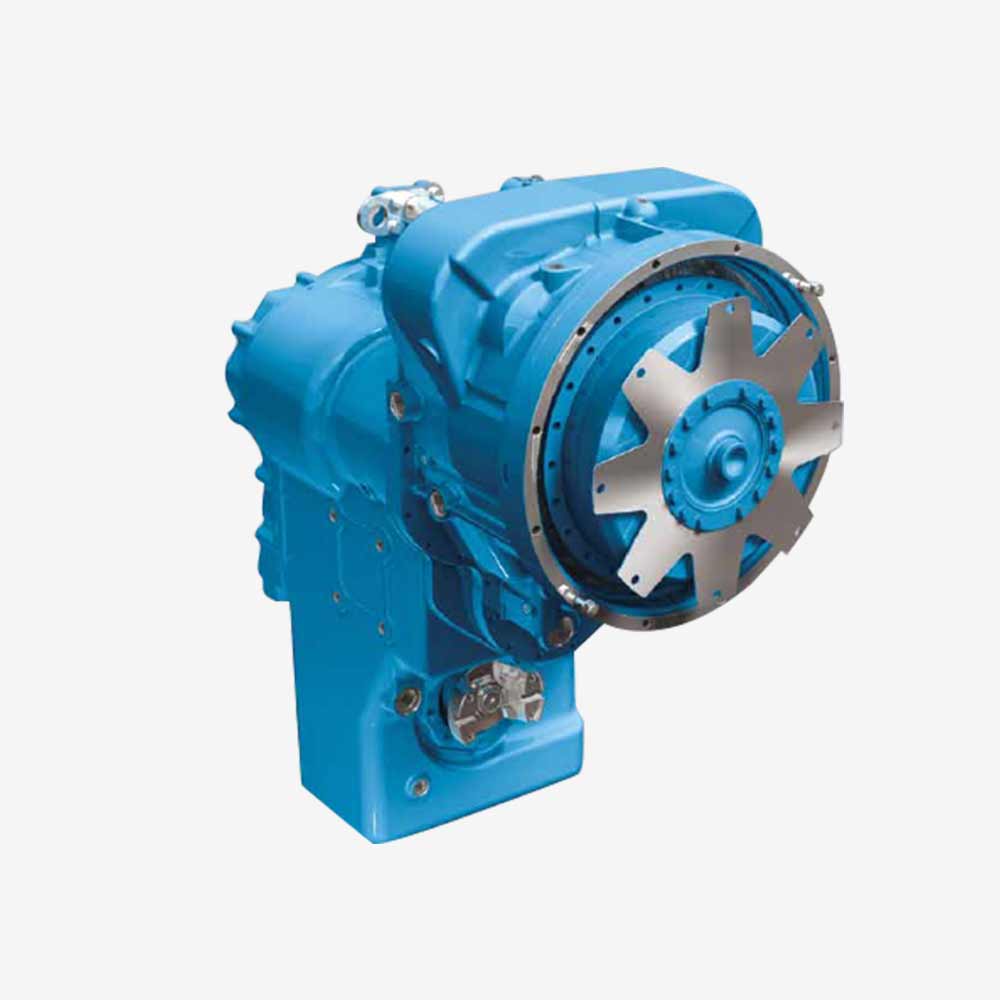

    Fans with electronic motors are used independently to cool hydraulic oil and brake oil, so that the requirements for use in the 50-degree high temperature environment are met. Torque converter oil temperature control management ensures that the gearbox works within the optimal temperature range.

  • Appearance

    The pitch-down streamlined design of the vehicle presents a vivid and sturdy profile. The optimized counterweight contour greatly reduces the turning radius of the vehicle, broadens the side rear and front rear views, and makes driving simple and safe.
