1200~1600kg

Load Capcity

0~5500mm

Lift Height

Lead Acid Battery

Drive Types

OVERVIEW

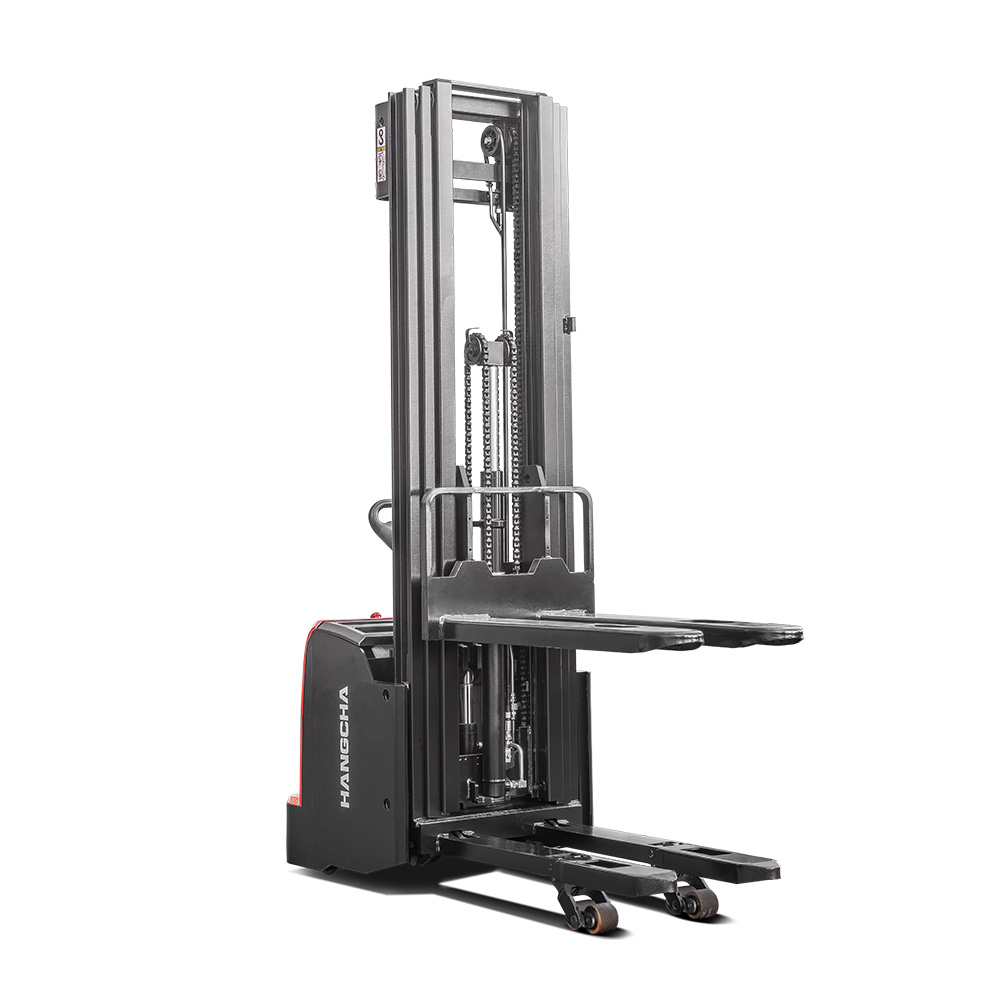

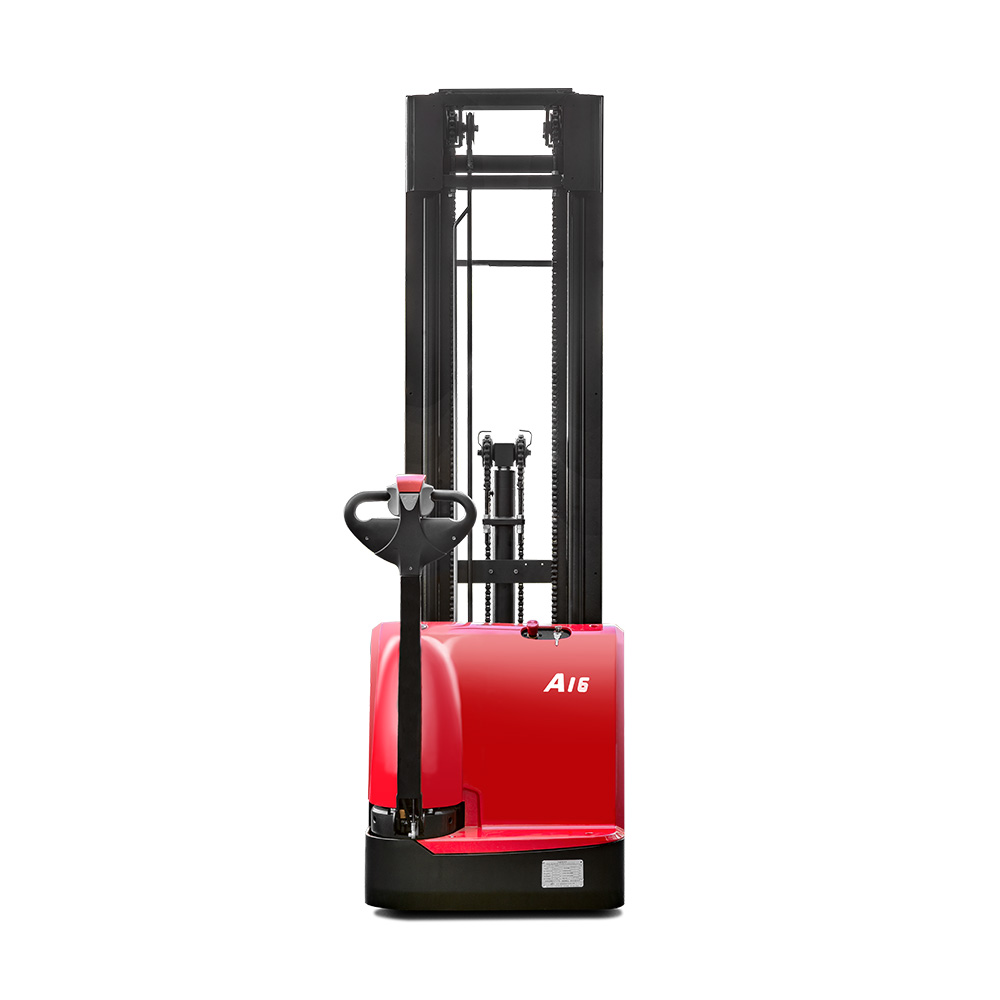

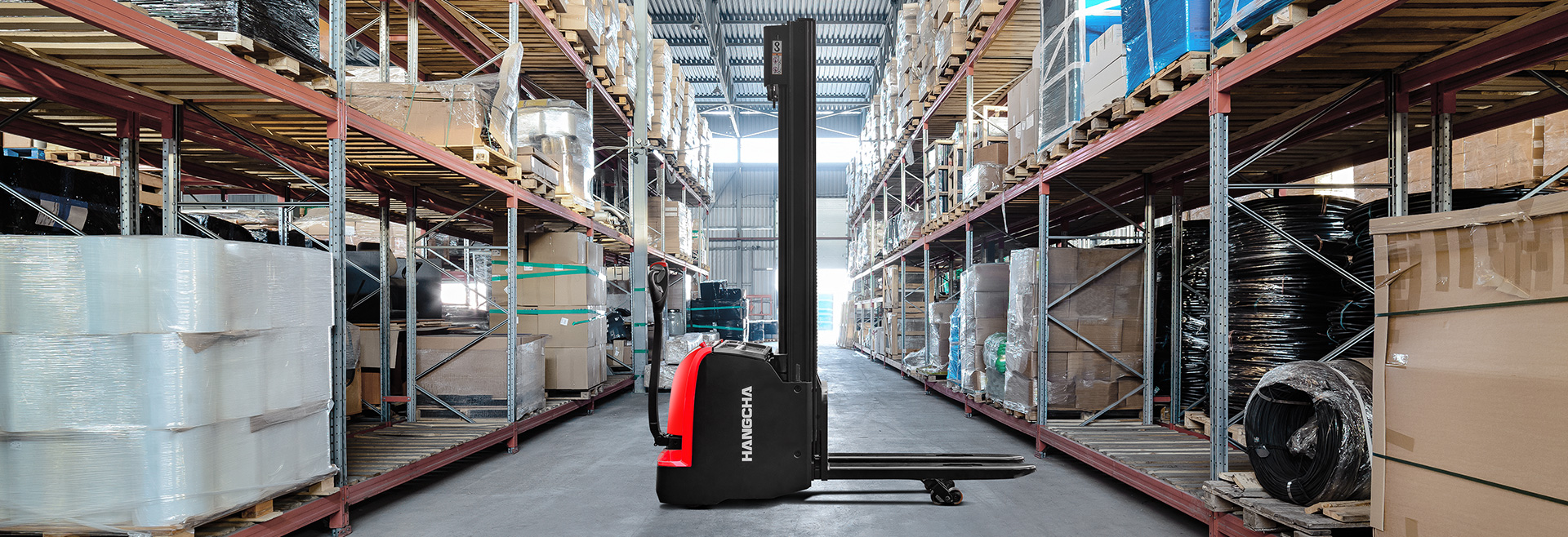

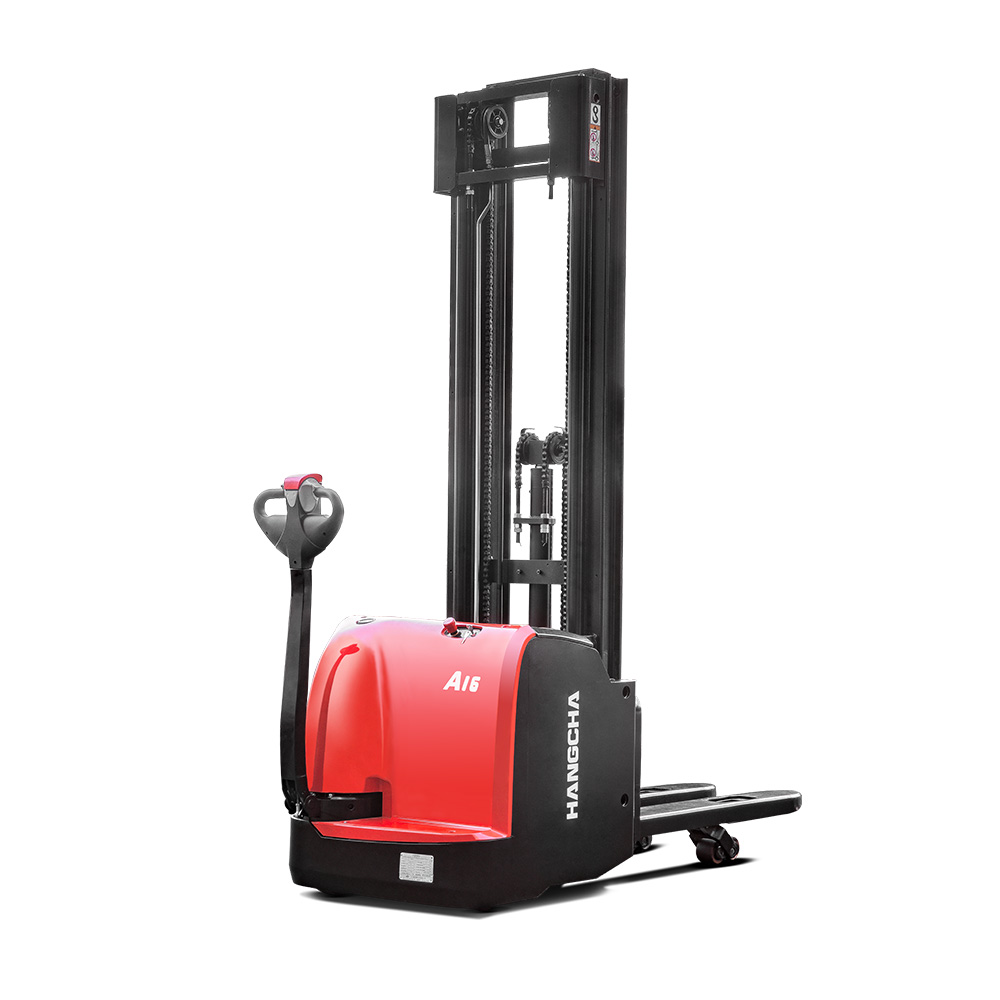

The A series pedestrian stacker is a new product developed for warehouse and logistics applications. With the latest AC control technology, it features excellent performance, easy operation, safety and reliability, and low maintenance cost, and is an ideal vehicle for loading, unloading, and handling palletized goods in warehouse, supermarket, and workshop.The lithium battery forklift is equipped with the c-series forklift special lithium battery cell and module jointly developed by HANGCHA and CATL, standard power distribution heating function.

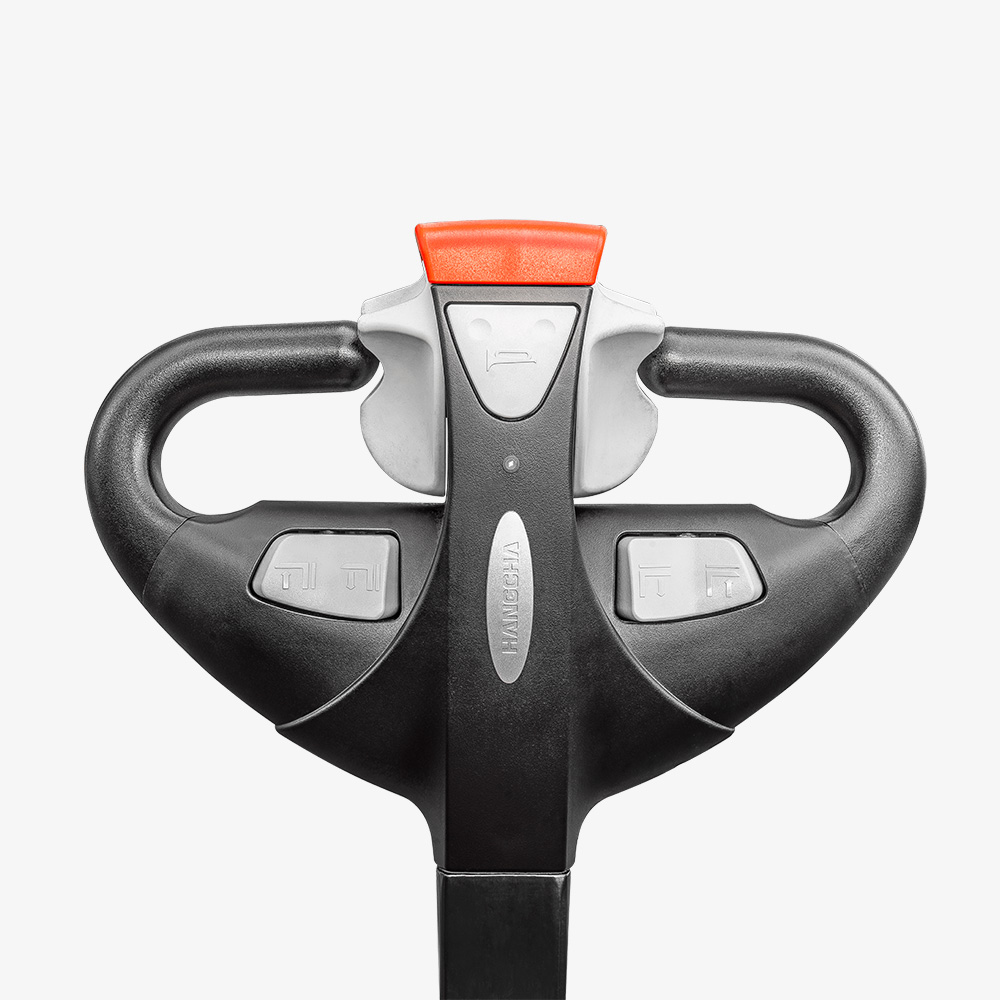

With the compact and stylish joystick of REMA, a German brand, all operations can be completed with one hand

The non-contact proximity switch has a long life and can work reliably

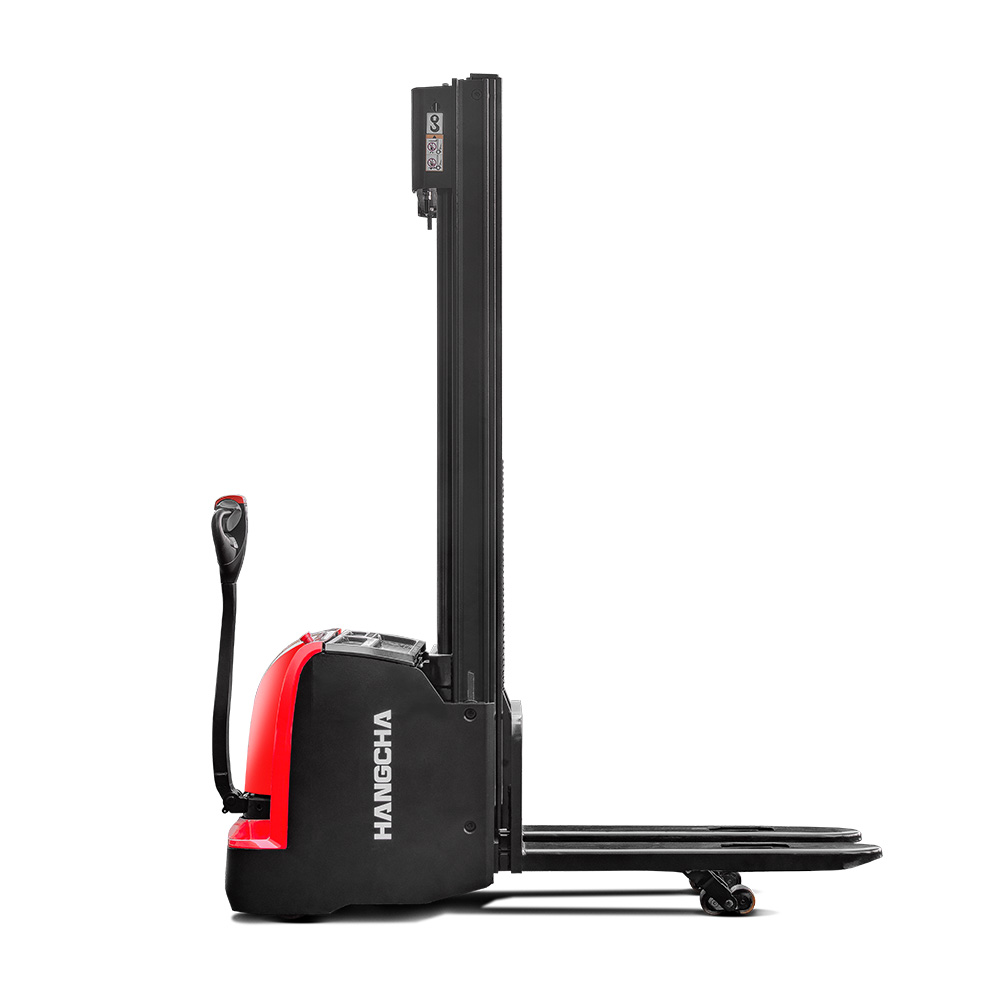

Designed to be narrow with large round corners to improve suitability for concentrated shelves and with a wedge-shape chassis to provide higher passing ability

With the upper and lower pallet handling design to meet the stacking operation need and enable a higher efficiency of goods handling

FEATURES
  • Appearance

    The A series pedestrian stacker adopts a professional industrial design of exterior. The vehicle has a smooth vivid profile and a fully ergonomic design, following the latest exterior design trend. With a large number of steel plate stamping and injection molding processes to enable a robust and durable product that meets environmental protection requirements.

  • High performance

    With AC walking motor, it has excellent acceleration performance, good climbing performance, low heat generation, no carbon brush and is maintenance-free. With the new AC control system to perform accurate, stable, and more efficient control. The CANBUS structure makes the whole vehicle communication faster and more reliable.

  • Reliability

    With the four-point low center of gravity design and a high-strength steel frame structure, the vehicle frame has a large residual load capacity and a long service life. All plug connectors are imported and waterproof, and all cables have reliable protection, which increases reliability of electrical system significantly.

  • Maintenance

    The brushless, maintenance-free AC driving motor reduces operation cost significantly. The meter integrating battery indicator, timer, and fault self-diagnosis is convenient for maintenance. Rear cover can be completely opened, maintenance is very convenient.

  • Comfort

    With the unique function of driving at a turtle speed with an indicator light, the vehicle can be more easily driven at a slow speed while carrying out operations in a very narrow space. The optimized body structure enables the vehicle to have an excellent operating view and to access the pallet easily.
