6,000~10,000kg

Load Capcity

0~7000mm

Lift Height

Li-Ion

Drive Types

OVERVIEW

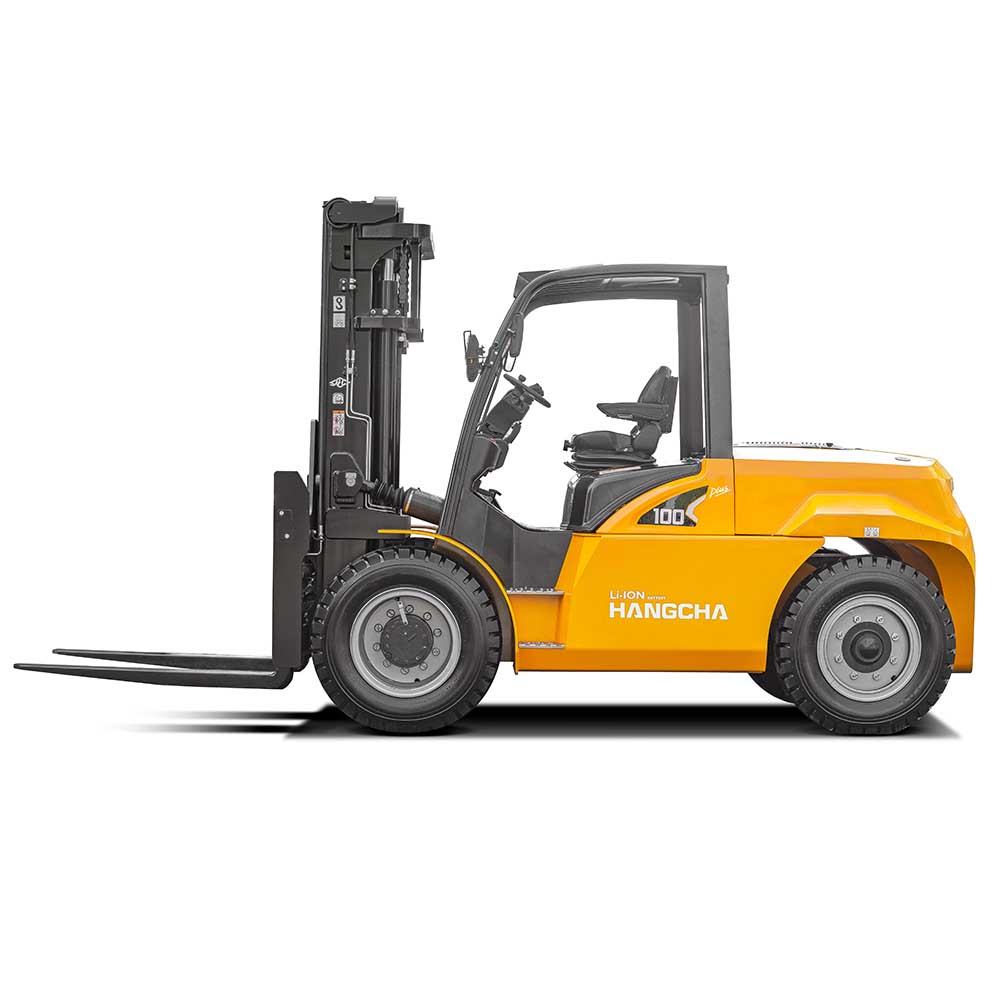

Independently developed by Hangcha on the basis of decades of deep understanding of electric forklifts and internal combustion forklifts, the dedicated XH series heavy-duty high-voltage lithium battery forklifts are a new series of products with a new energy vehicle voltage platform and a pioneered special structure that represents a breakthrough over the traditional design concept. Breaking through the perception of drive electric forklift, the series of products supersede the internal combustion forklifts and redefine the new generation of electric forklifts in terms of efficiency, power, reliability, etc..

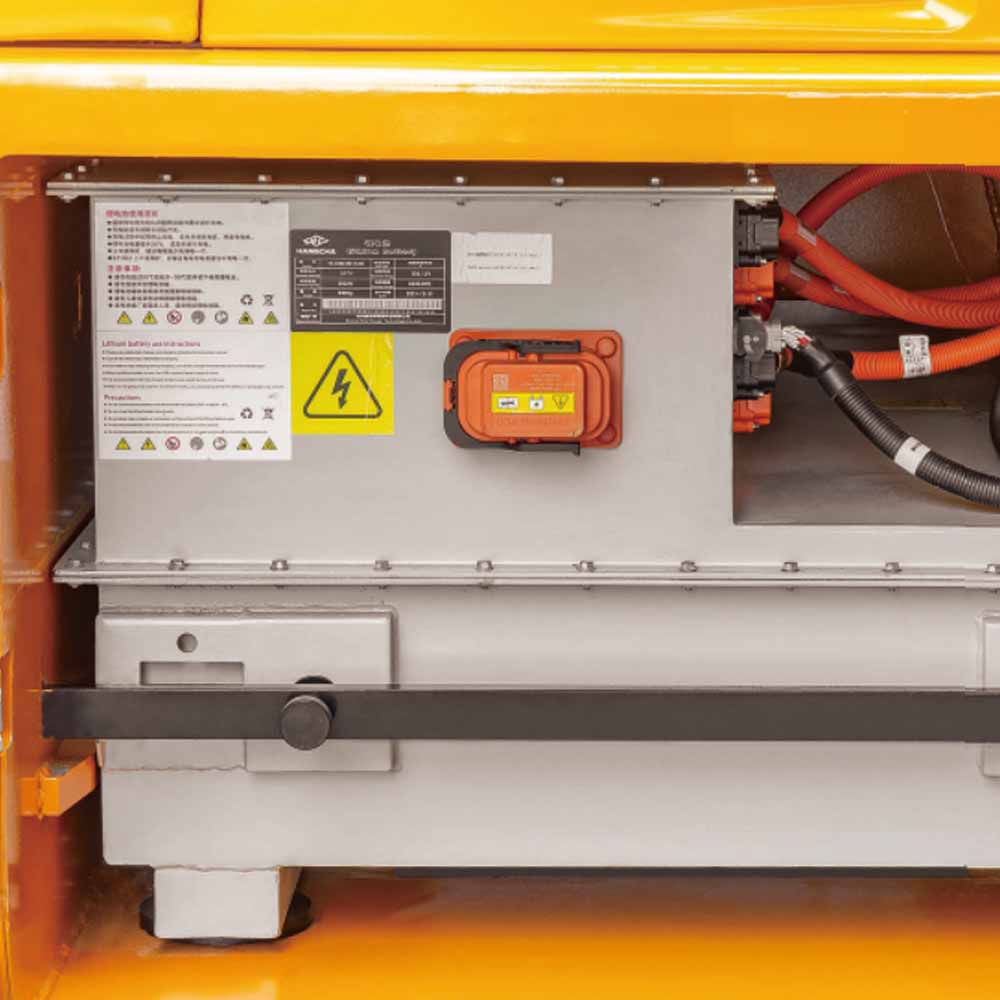

Standard large-capacity lithium battery

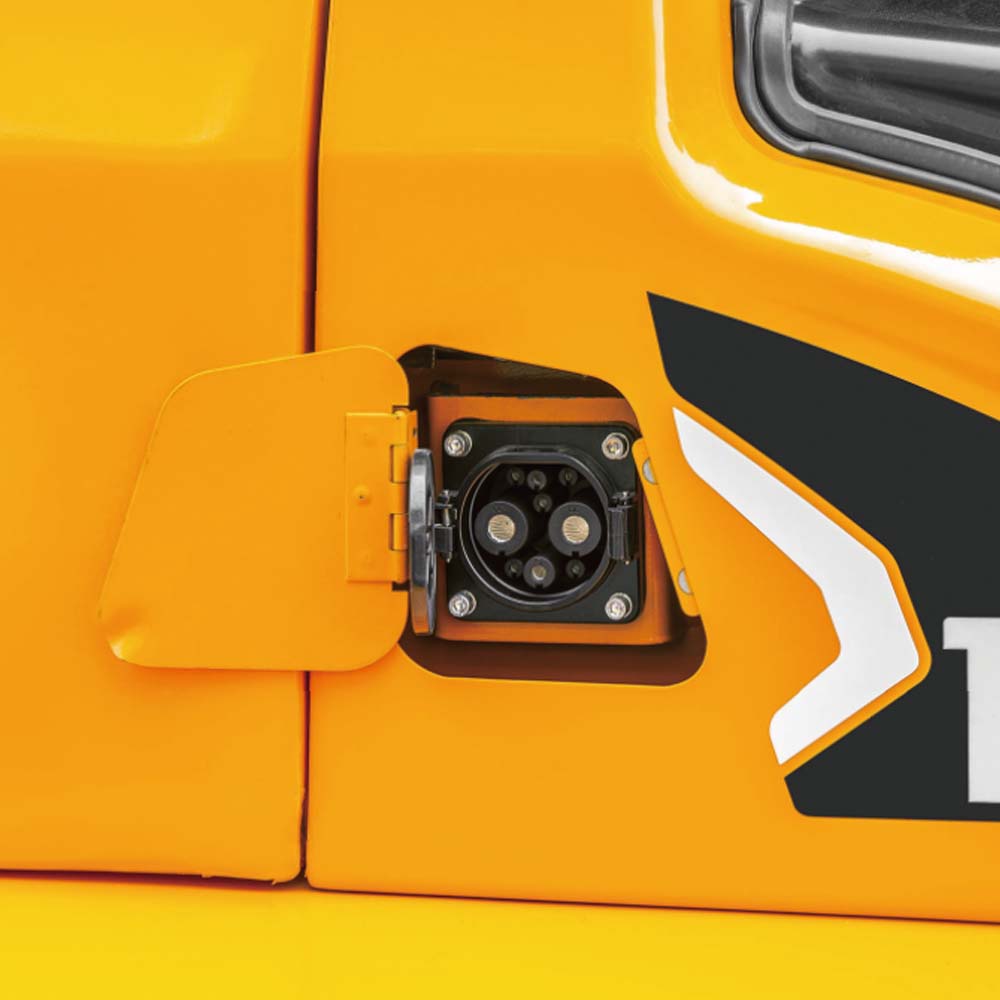

Compatible with the automobile charging pile to enable more convenient charging;

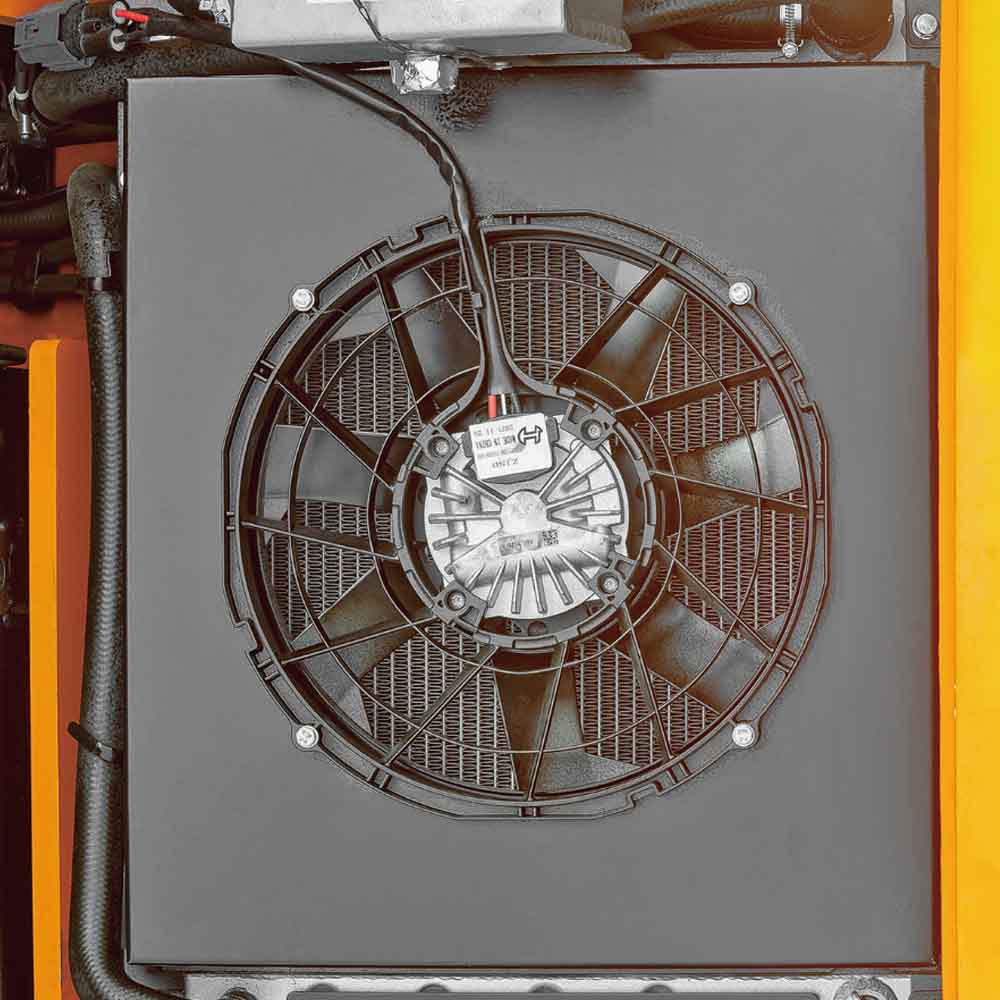

With regard to the series of products, a water cooling system with a good heat dissipation effect is used on a new energy forklift for the first time, so that the forklift can carry out long-time and high-intensity operations as internal combustion forklifts.

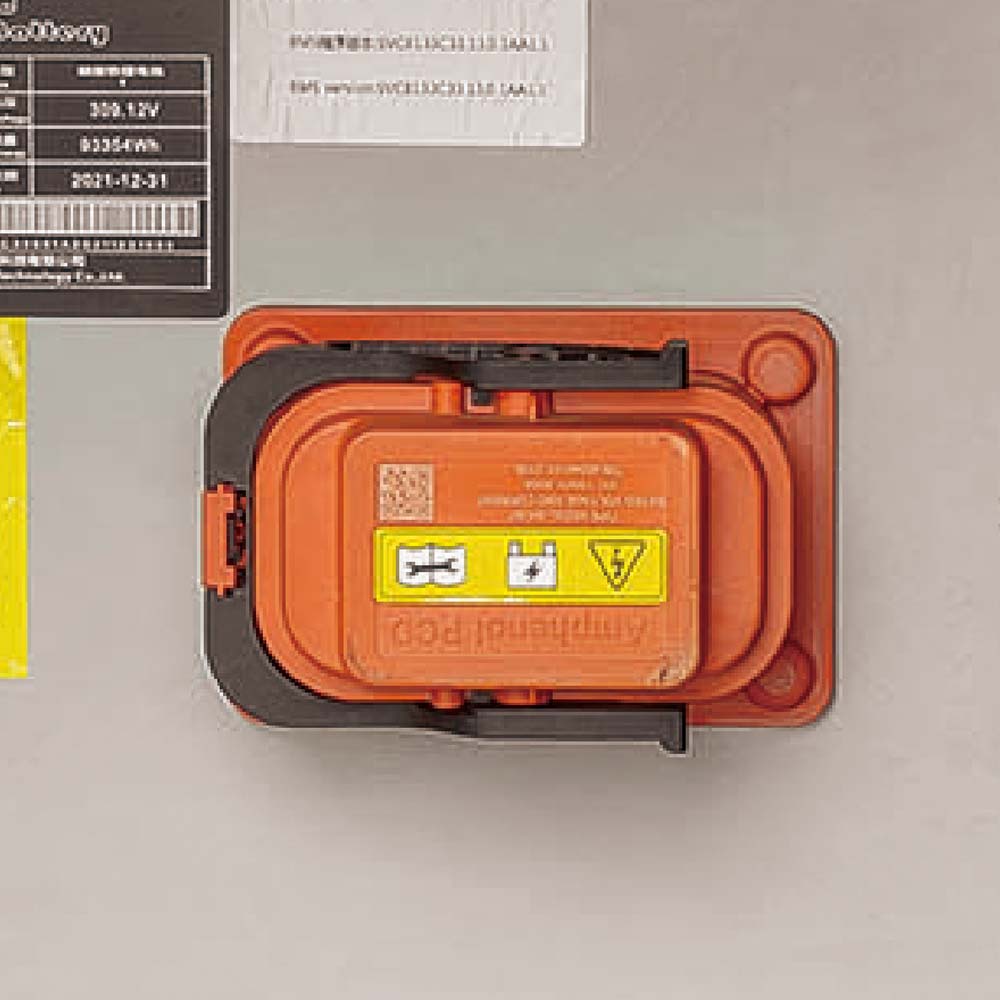

The electrical system is equipped with highvoltage interlocks, insulation detection and vehicle-grade safety means. The MSD maintenance switch enables one-click power-down and safer maintenance.

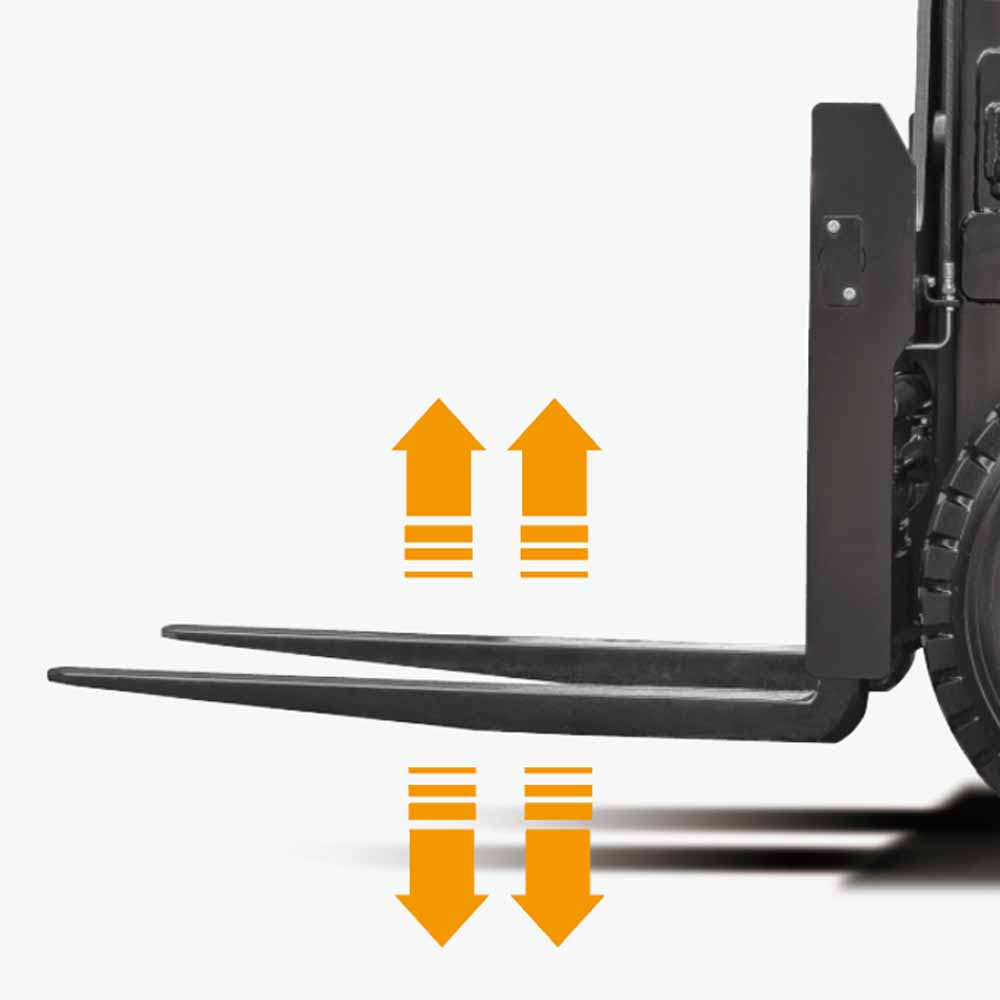

The standard configuration provides a fork descending buffering function. In addition, an optional electronic control function for buffering the fork’s ascending is provided to protect the goods from falling and damaging the ground.

FEATURES
  • Ultra-long battery life

    The vehicle uses an overall controller to control the traction motor controller assembly and the driving motor controller assembly to form a highly independent, light-weighted, efficient and intelligent drive system.

  • Internal combustion condition

    Both the drive and operating systems are vehicle-grade permanent magnet synchronization systems. Equipped with a high speed ratio gearbox, the driving speed, upslope degree and acceleration performance surpass that of internal combustion vehicles.

  • Easily maintainable

    The water tank lid can be removed quickly and easily without a tool to enable a large operating area for cleaning and maintenance.

  • Safety

    The cover of the vehicle is designed to be sealed to the water resistance level of IPX4 for the body. All the motor, electronic controls and high-voltage components reach the dust and water resistance level of IP67, a high protection level adequate to withstand harsh operating environments and ensure safety and reliability.
