12000 - 16000 kg

Load Capcity

3000 - 6500 mm

Lift Height

Li-Ion

Drive Types

OVERVIEW

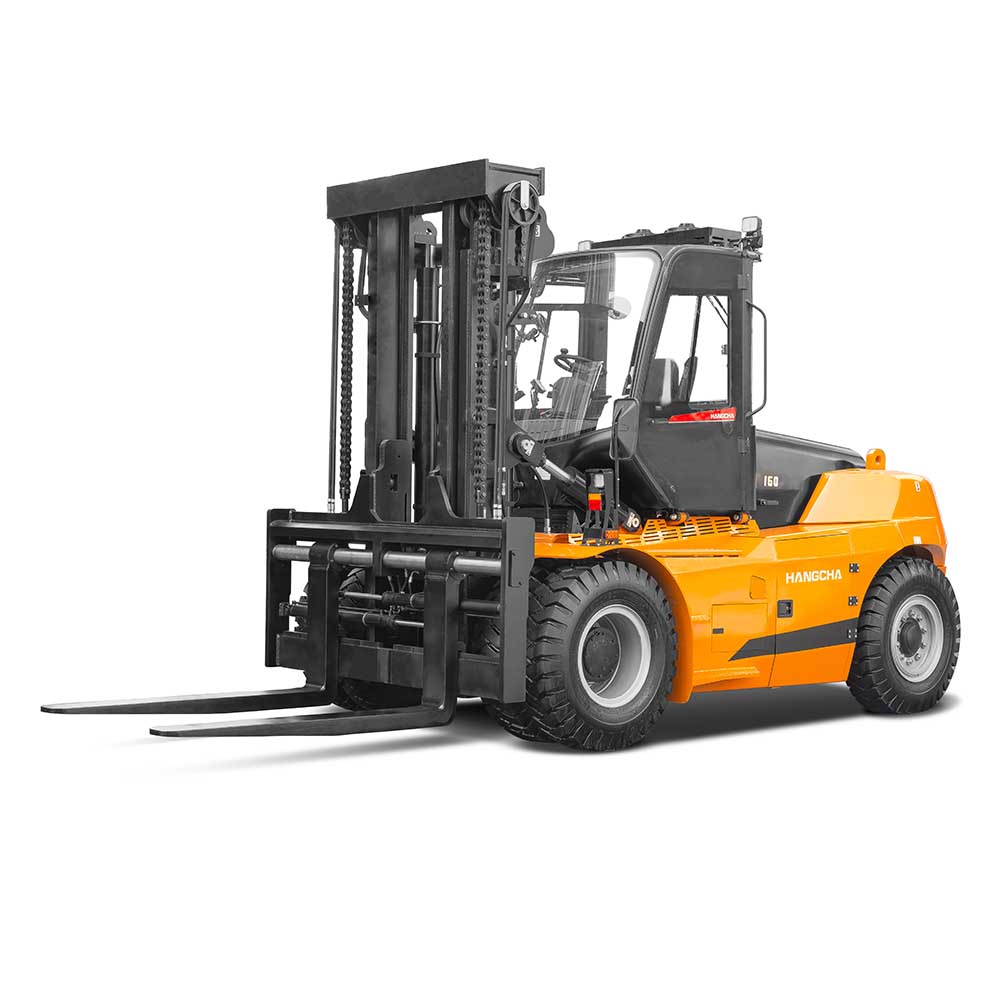

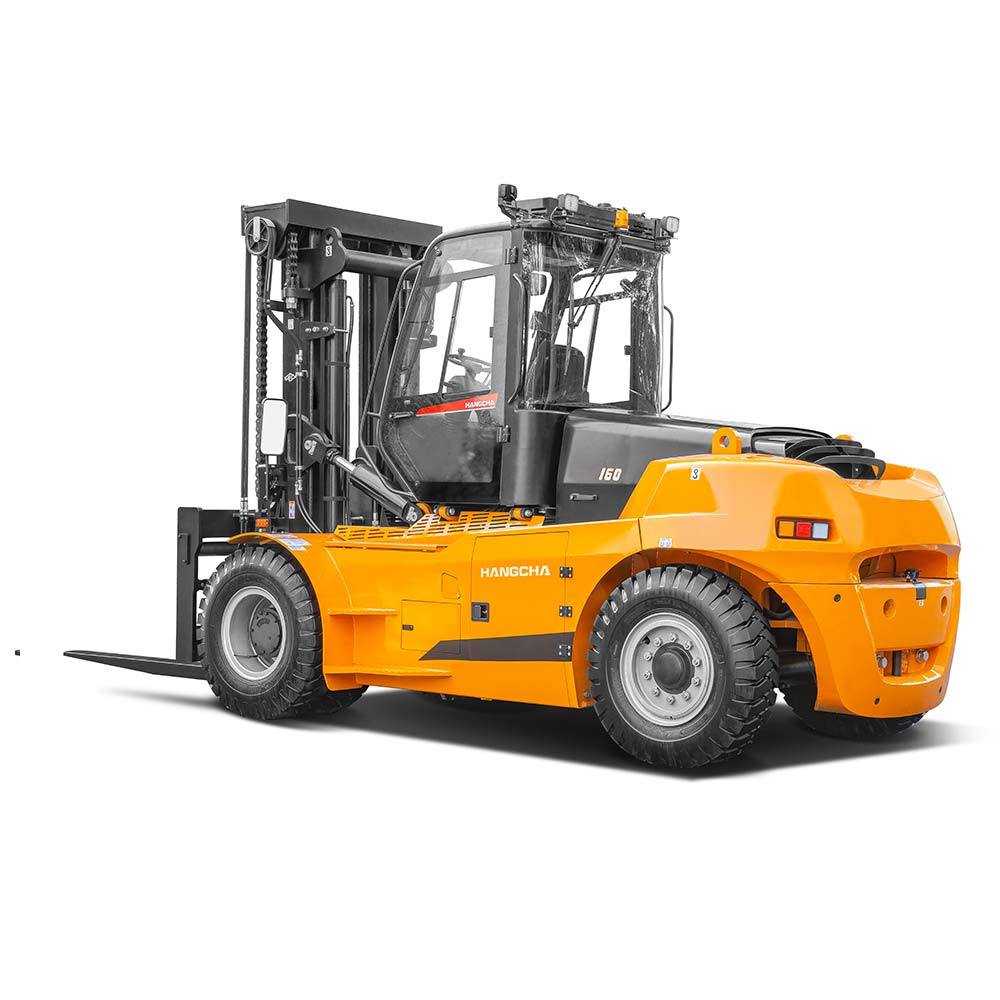

Independently developed by Hangcha, the dedicated XH Series high-voltage lithium-ion forklifts build on decades of expertise in both electric and internal combustion trucks. Featuring a next-generation voltage platform and an innovative structural design, they mark a breakthrough beyond traditional concepts. By surpassing the limitations of conventional electric forklifts, the XH Series is engineered to replace internal combustion trucks and to redefine the next generation of electric forklifts in terms of efficiency, power, and reliability.

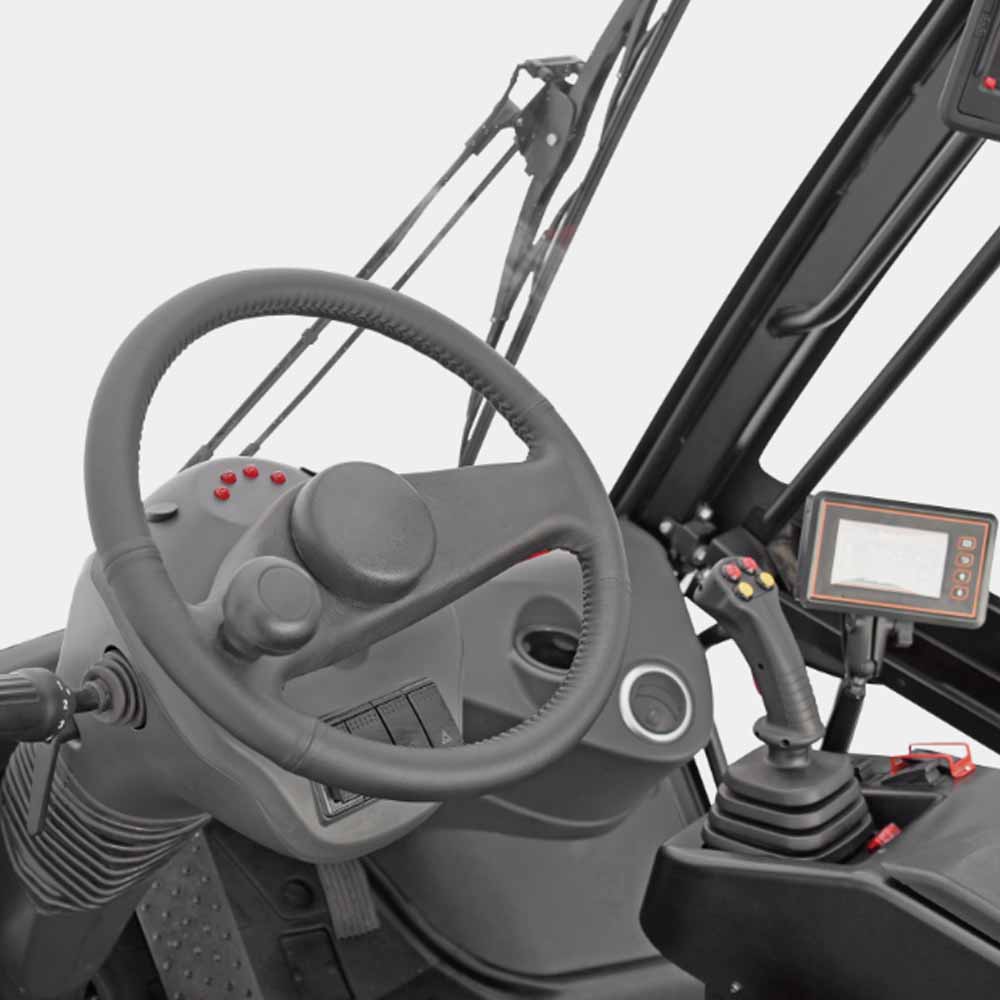

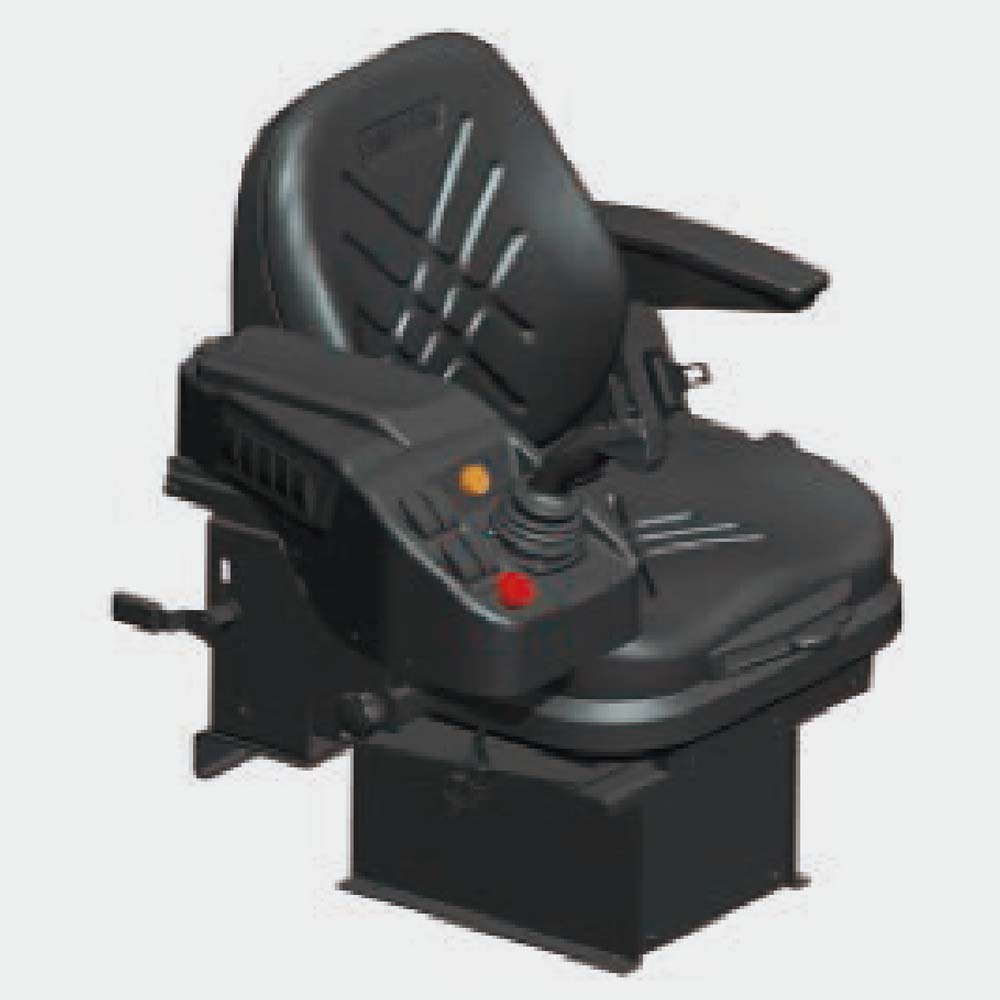

Integrated handle and pilot remote control allow flexible and accurate operation; hydraulic brake curve is optimized to achieve smooth and easy-to-control braking; suspension seat, following the floating multi-direction adjustable control platform, is comfortable to control.

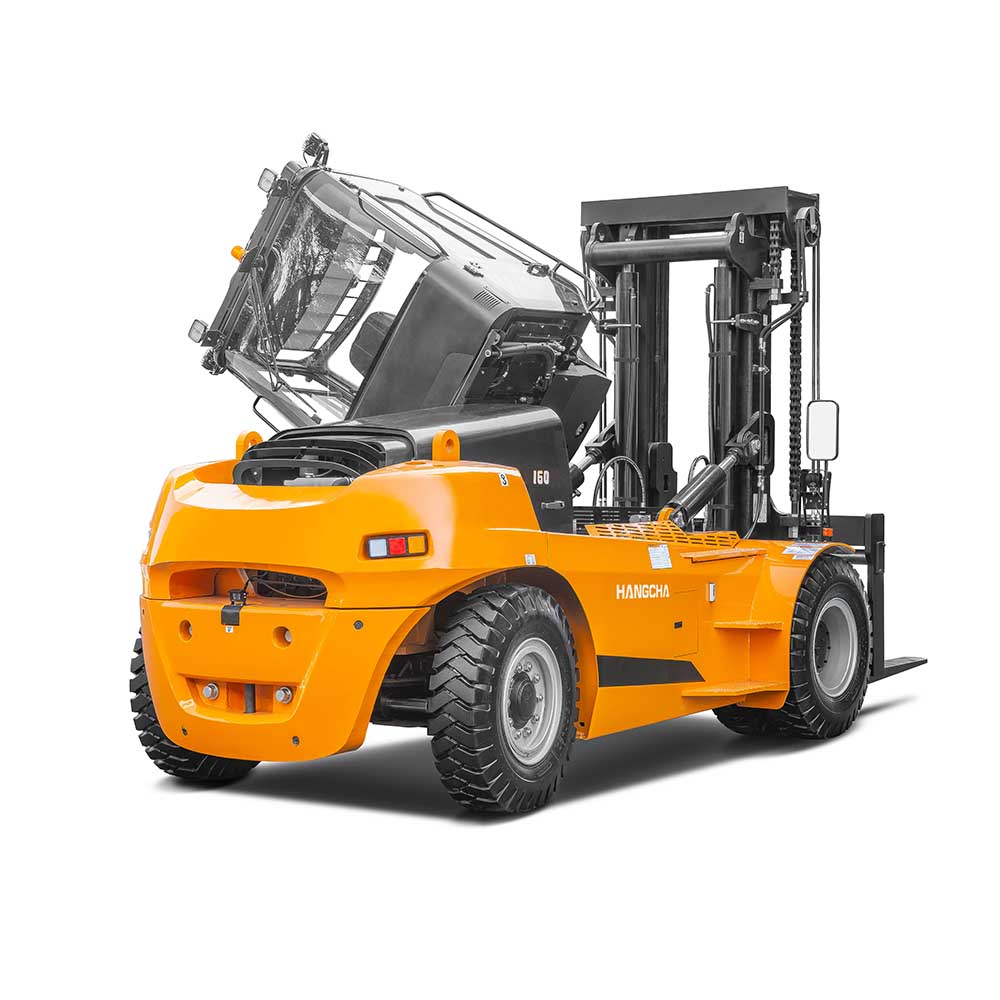

The new fully-suspended cab with panoramic view enables a clearer view. Performance of the air conditioner is improved to enable uniform conditioned air blowing from the air outlet and a strong cooling effect. The waterproof, dust-proof, heatproof, soundproof, noise-reducing sealing design improves driving comfort. The molded interior parts enable a more comfortable feel. The integral frame is constituted by profiled steel pipes. The structural parts have higher strength.

The multifunctional color-screen instruments are designed to have graphical interfaces and display data clearly. The interfaces can be switched to be shown in Chinese and English to meet the needs of customers at home and abroad.

FEATURES
  • Comfort

    The wide-view mast with optimized design is unlikely to obstruct the operator's line of sight. The enlarged opening size of the fork carriage enables a wider view, a large operation space, and excellent ergonomic design.

  • Intelligentization

    A vehicle central controller is provided, which has bus architecture, several built-in diagnosis and management functions and a central fault alarm function. An optional intelligent management system is provided to enable intelligent remote monitoring and easier equipment management and logistics management.

  • Advancement

    The vehicle’s 541V high-voltage platform, equipped with a heavy truck water-cooled standard box, features better heat dissipation, longer endurance mileage and more durable battery.

  • Safety

    The cover of the vehicle is designed to be sealed to the water resistance level of IPX4. All the motor, electronic controls and high-voltage components reach the dust and water resistance level of IP67, a high protection level adequate to withstand harsh operating environments and ensure safety and reliability.
