1200 - 2000 kg
Load Capcity
2000 - 5500 mm
Lift Height
Li-Ion
Drive Types

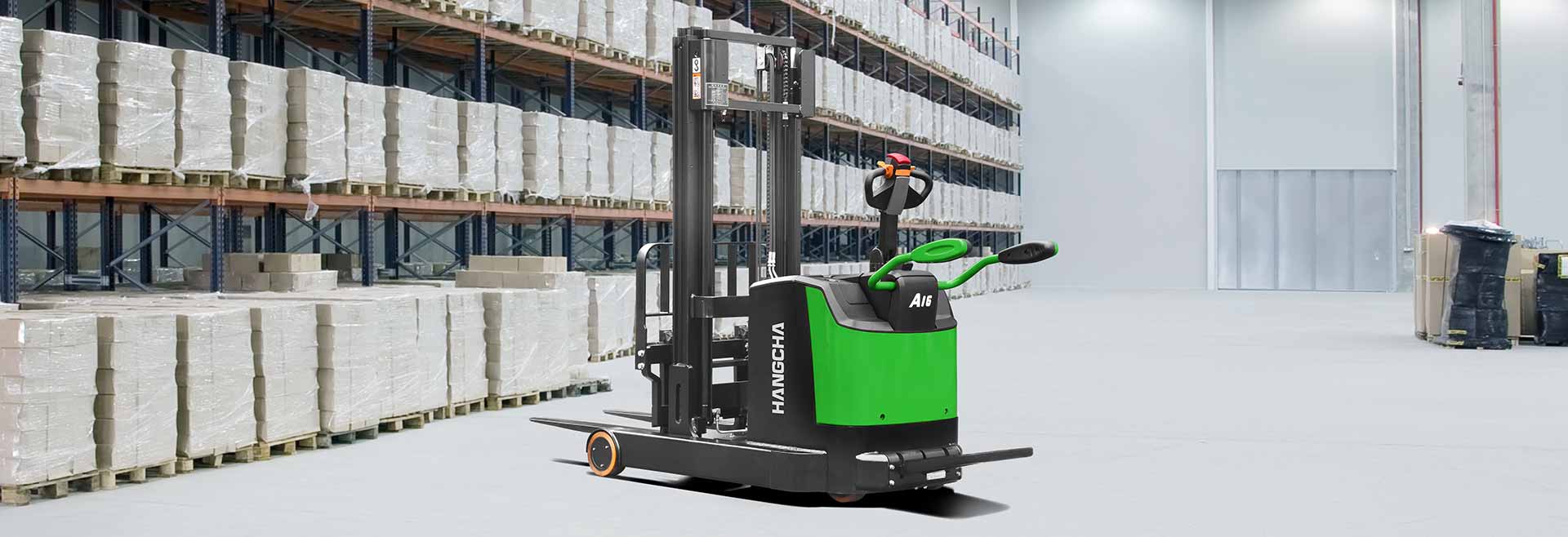

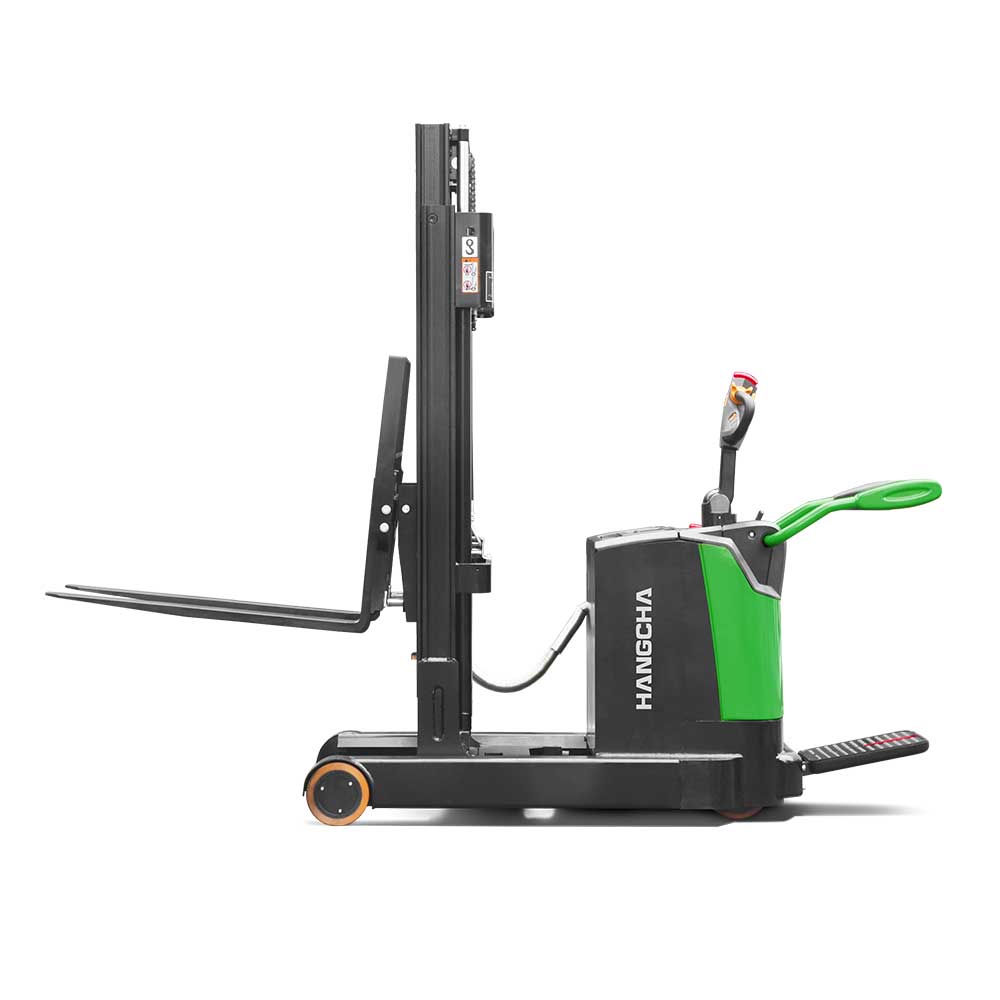

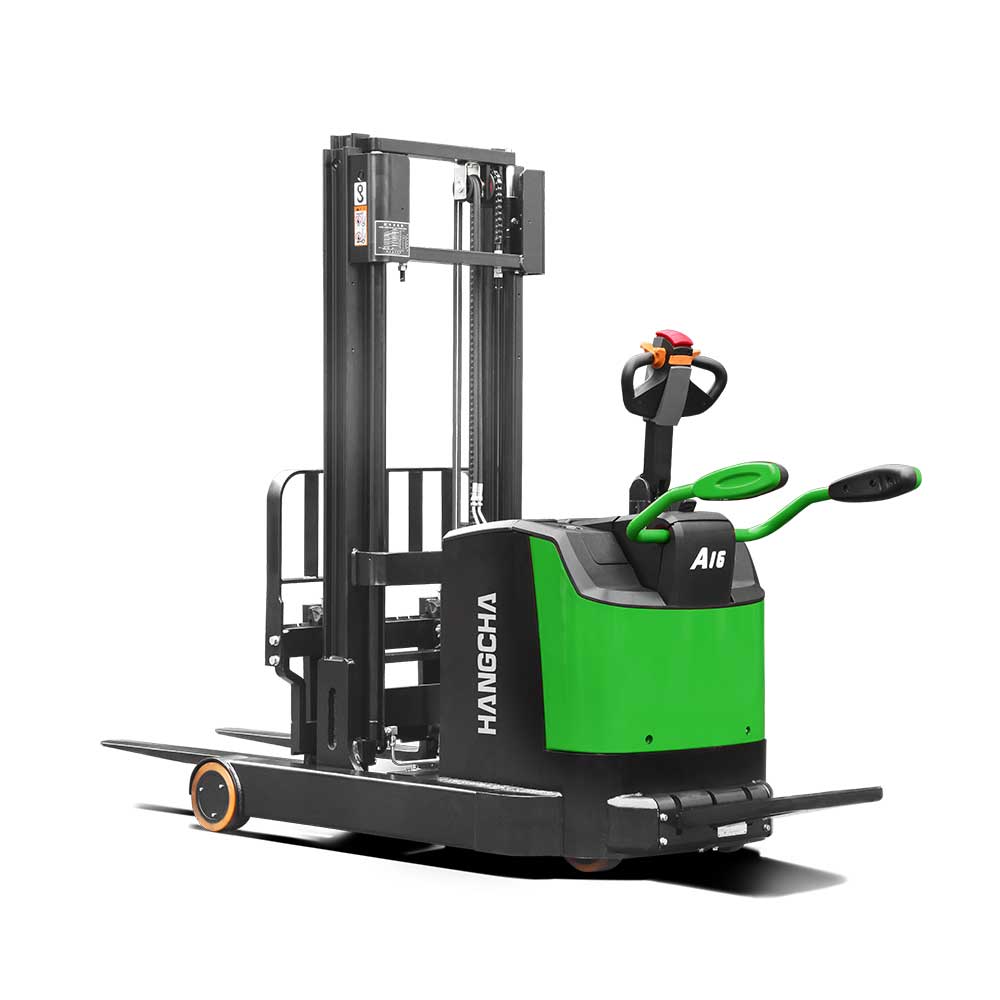

The A Series Pallet Stacker with Retractable Mast combines the advantages of both a regular stacker and a counterbalanced stacker. It is capable of handling non-standard pallets, closed pallets, and enclosed shelves with ease. The mast can be retracted into the truck body, significantly reducing the required aisle width and making it an ideal solution for operations in narrow spaces. Equipped with cutting-edge AC control technology, this stacker delivers excellent performance, comfortable operation, enhanced safety and reliability, and low maintenance costs.

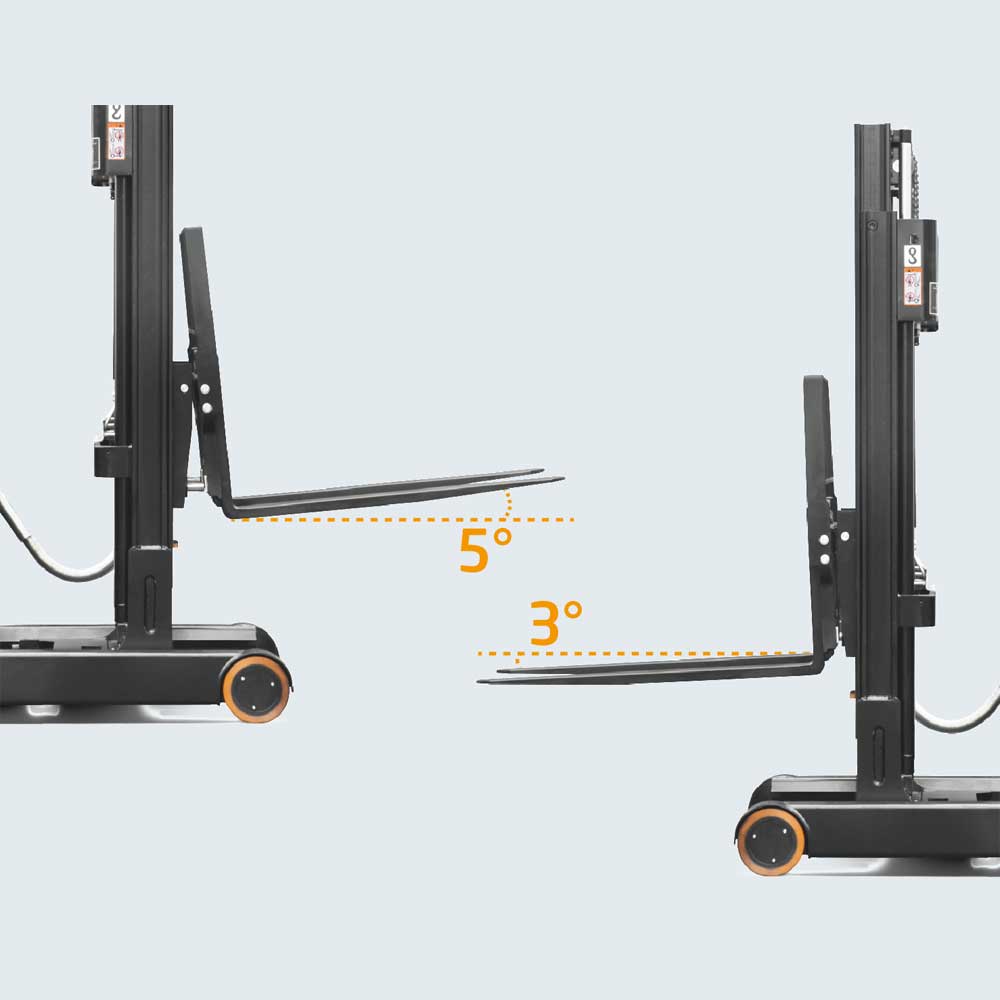

Fork tilt F/R: 3°/ 5°

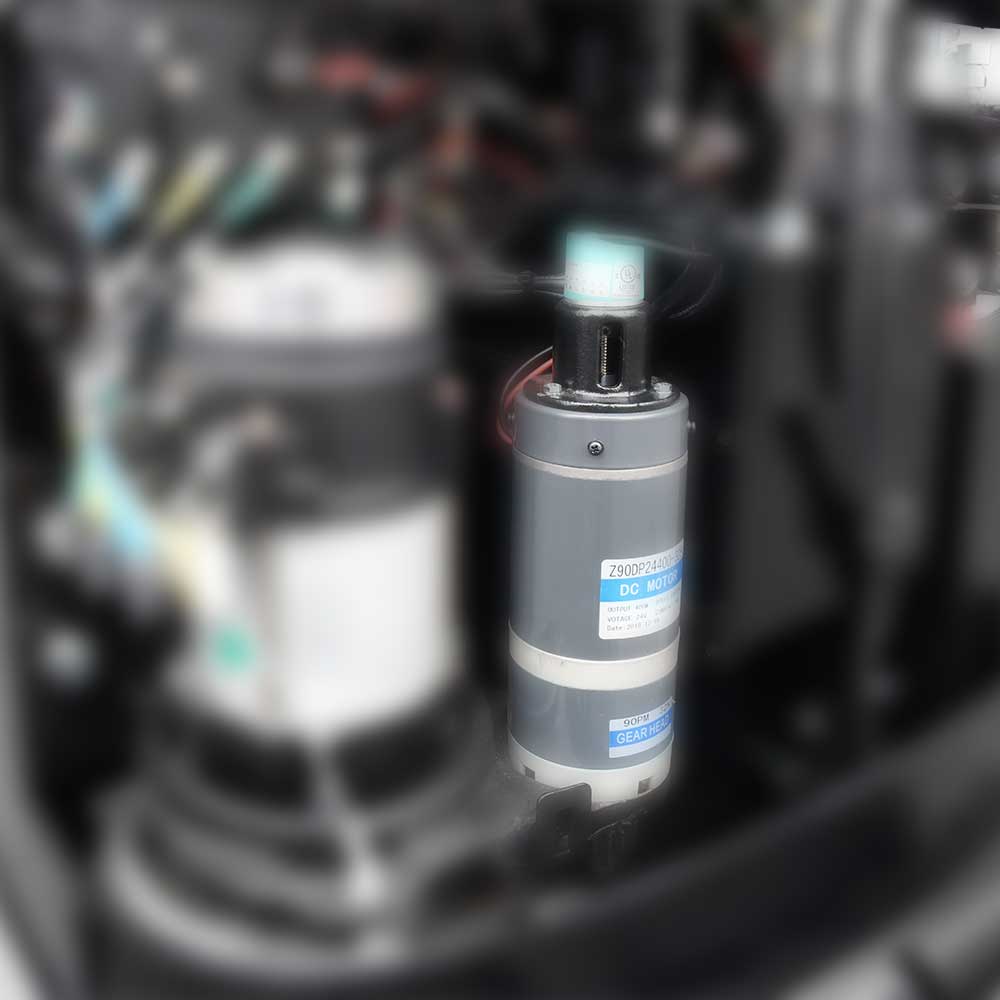

EPS (Electric Power Steering) is standard specification

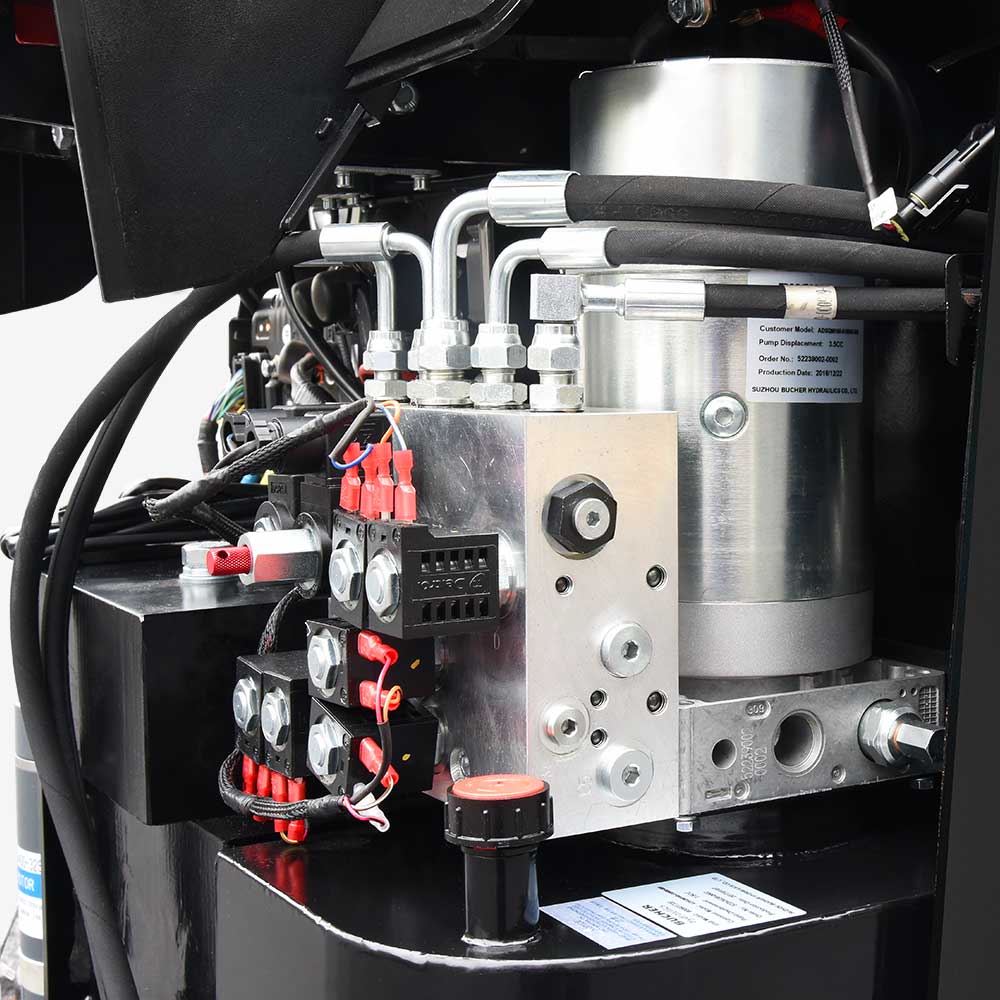

BUCHER hydraulic unit

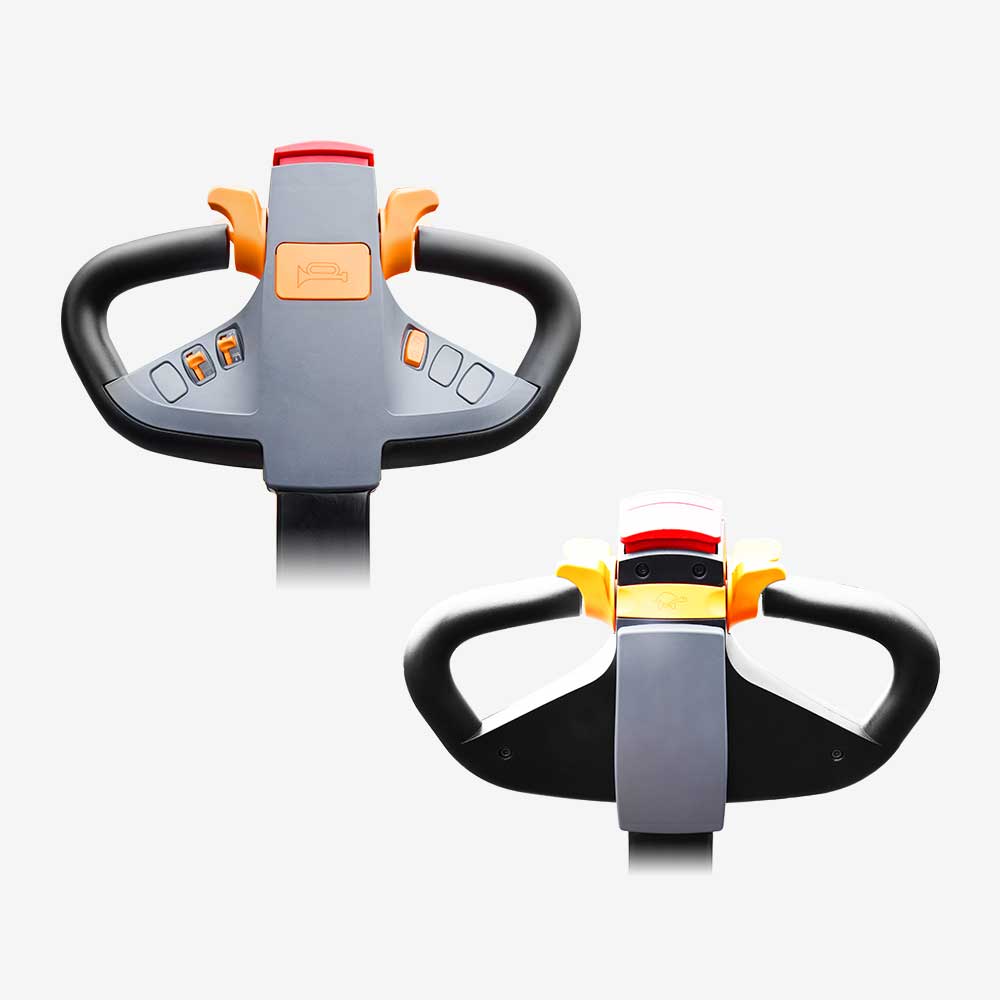

Multi-function tiller
The vibration-reduction design of the pedal reduces fatigue of long-duration operation.
Traveling speed will be automatically reduced after fork lifting 500mm.
Three-pivots and low-gravity-center design and the high-strength steel plate framed structure feature large residual load capacity, and long service life.
The brushless, maintenance-free AC driving motor reduces operation cost significantly.
